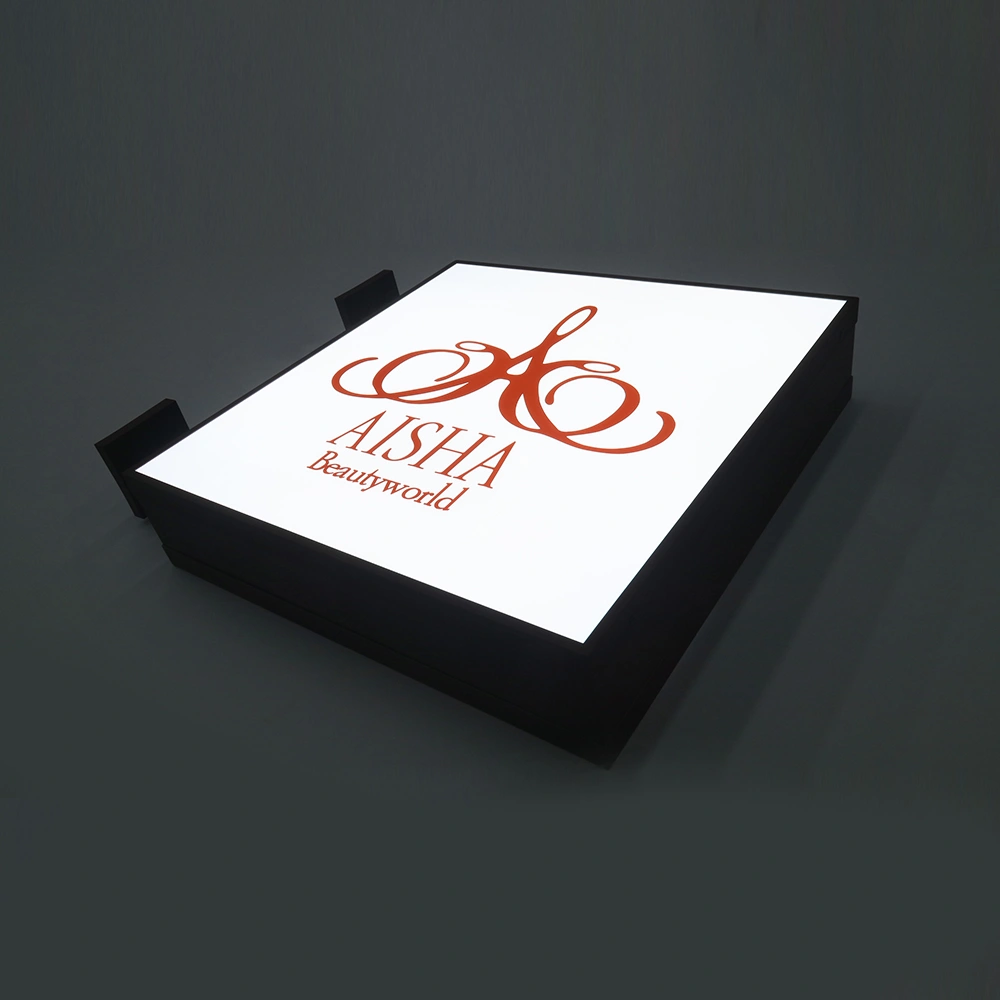

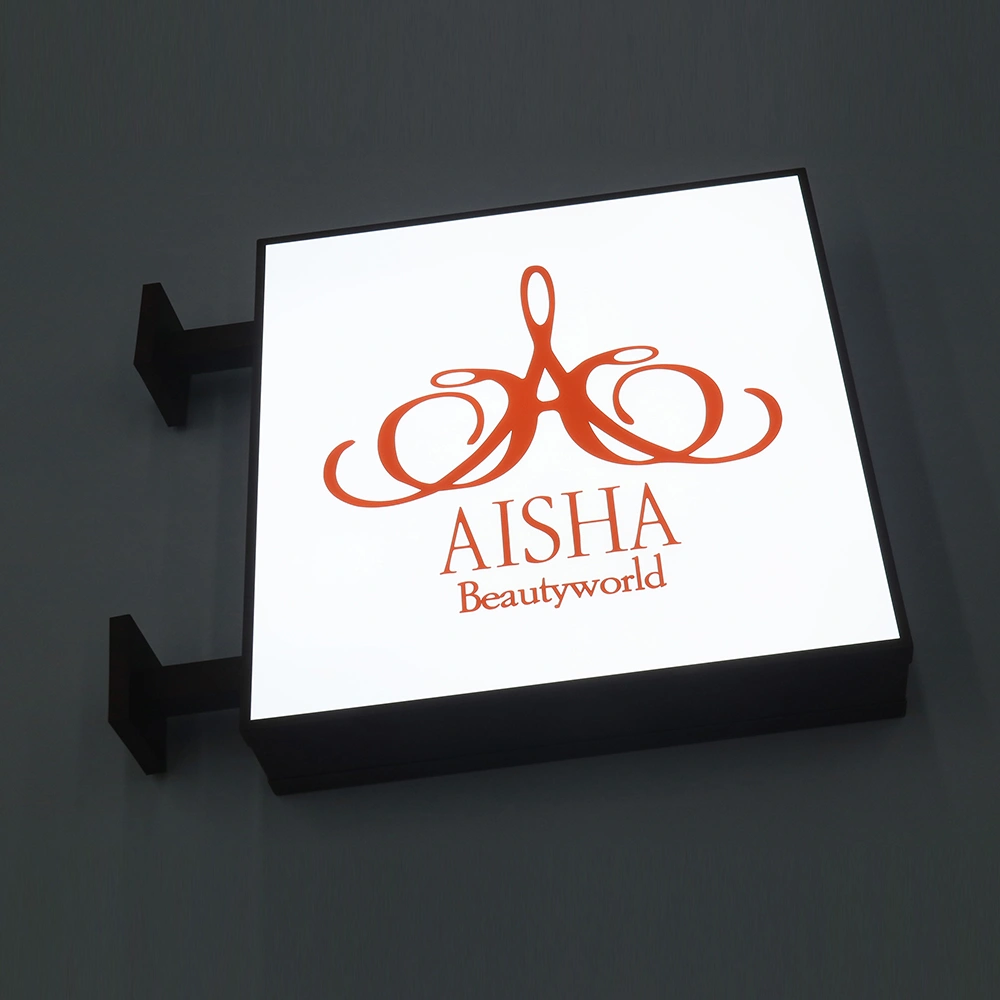

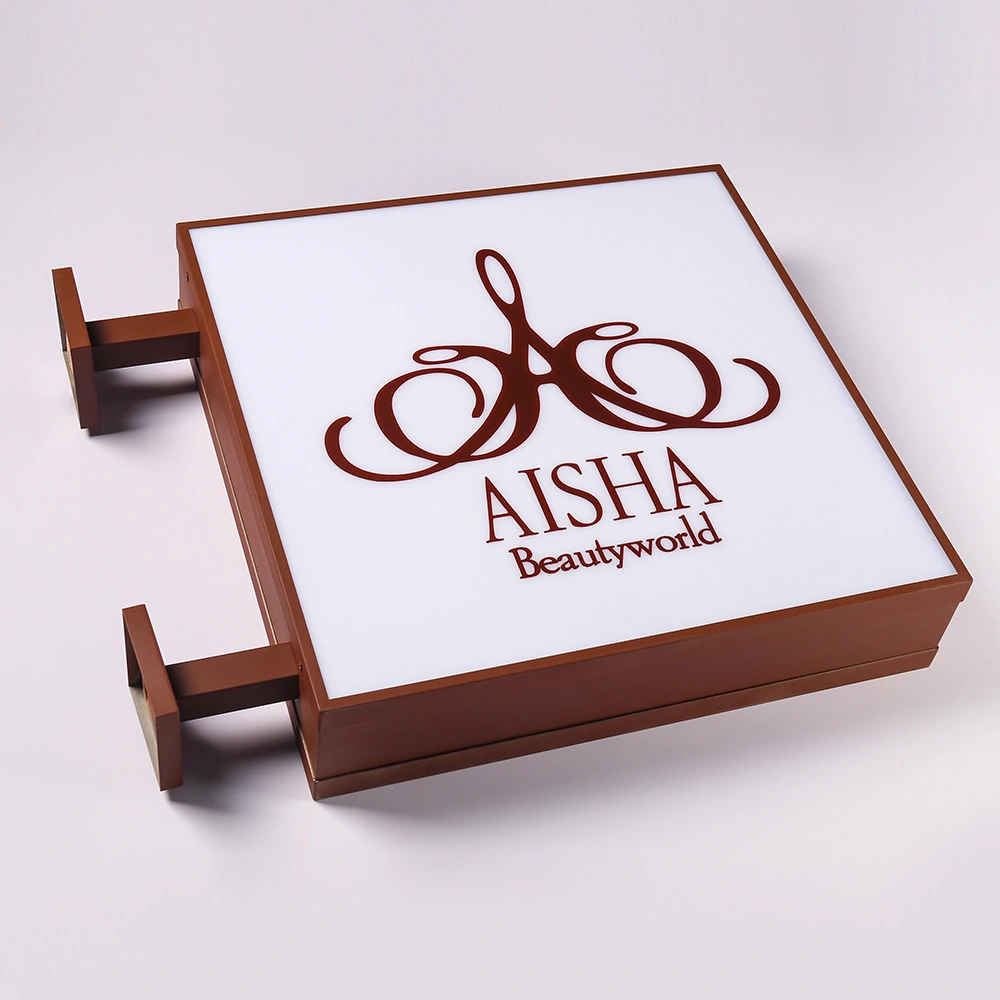

1. Product Overview
We fabricate this modern blade sign with a focus on flawless flatness and seamless construction. The UV-printed graphic is permanently sealed behind a clear, flat acrylic face, housed within a rigid stainless steel perimeter frame. The result is a durable, low-profile illuminated sign that excels in both corporate and retail environments.

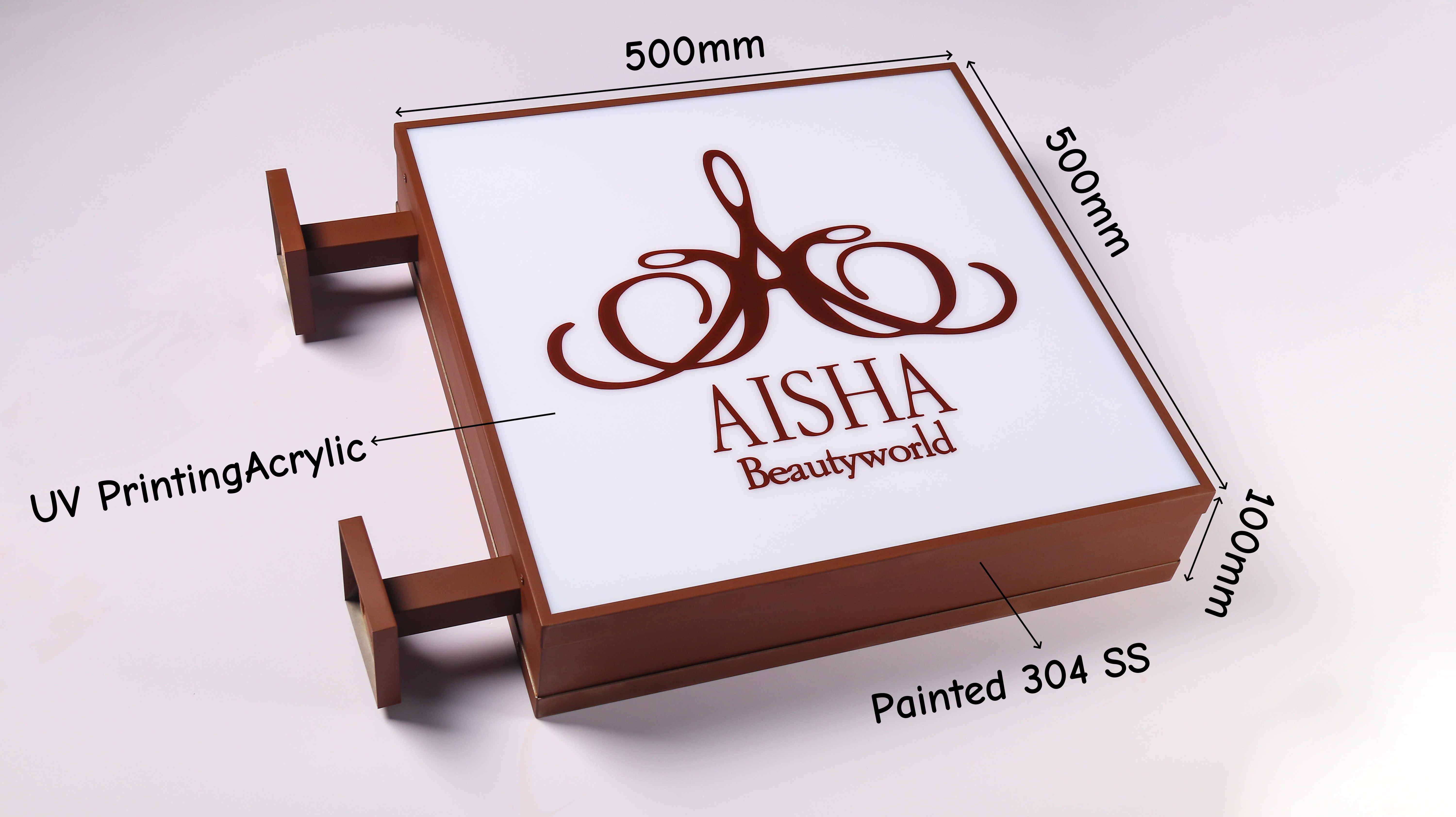

2. Technical Specifications
| Feature | Specification |
|---|---|
| Type | Double-Sided Blade Sign / Light Box Sign |
| Face Material | Clear Cast Acrylic, UV-stabilized for outdoor use |
| Graphic Application | UV Printing |
| Frame Material | Painted Stainless Steel 304 |
| Illumination | Dual Independent LED Systems for consistent, bright illumination on each face |
| Light Source | Waterproof LED Module |
| Profile Thickness | 100mm |
| IP Rating | IP65 Standard; IP67, IP68 Optional |
| Mounting System | Stainless Steel Projecting Arms welded to rear frame. Requires structural wall attachment |
| Finish Options Frame | Brushed Stainless, PVD Colored Stainless (Black, Gold, etc.), or Powder-Coated |
3. Our Craftsmanship
l Flawless Flatness: Precision-machined acrylic and frame components ensure a perfectly flat, undistorted graphic surface with no bulging or waves.
l Seamless "Picture Frame" Build: The stainless steel frame is miter-cut and welded with a clean, continuous seam, creating a minimalist border around the graphic.
l Uniform Panel Illumination: Advanced edge-lighting or spine-lighting techniques provide consistent brightness across the entire flat panel, with no dark corners or hotspots.
l Rigid & Slim Structure: The all-metal perimeter frame provides exceptional torsional rigidity, allowing for a slim profile while resisting flexure.
4. Customization Options
We build to your specified dimensions and design for a perfect fit.
l Size & Proportion: Custom width and height. Ideal for wider formats to maximize graphic impact.
l Frame Material & Finish: Stainless Steel or Aluminum. Choose a metal aesthetic: Brushed Stainless (modern industrial), PVD Black/Gold Stainless (luxe), or Color-Matched Powder Coat.
l Graphic: Supply final, high-resolution artwork. We manage color calibration and scaling for the flat print bed.
l Mounting Projection: Customize the length of the projecting arms to meet local bylaws and visibility needs.
l Lighting Control: Standard constant on, or with dimming/photocell controls.
5. Professional Engineering & Drawing Service
Ensuring a Secure, Flawless Installation
The flat panel design places a premium on precise mounting to avoid visual distortion.
We Provide: Detailed assembly drawings, mounting arm details, wiring diagrams for edge-lit systems, and wall preparation guidelines.
Critical for Installation: A full-scale mounting template is provided to ensure the bracket arms are perfectly aligned, preventing any stress on the rigid frame.
6. Packaging & Logistics
l Professional Crated Packaging: Each sign is fully assembled, protected with foam and film, and securely mounted inside a custom-built wooden crate for maximum protection during transit.
l Complete Hardware Kit: All mounting arms, structural fasteners, seals, and electrical components are included, clearly labeled, and packed within the same crate.
l Global Shipping Managed: We coordinate insured, trackable freight shipping. Expertise in handling crated goods ensures safe delivery worldwide.
7. Why Partner With Us?
l Structural Focus: We engineer for longevity and safety, not just appearance. Our designs account for real-world environmental stresses.
l 5-Year Comprehensive Warranty: Covers LEDs, drivers, structural integrity, and the sealed graphics against delamination or failure.
l End-to-End Project Support: From initial site considerations to final installation guidance, we provide expert support throughout the process.
